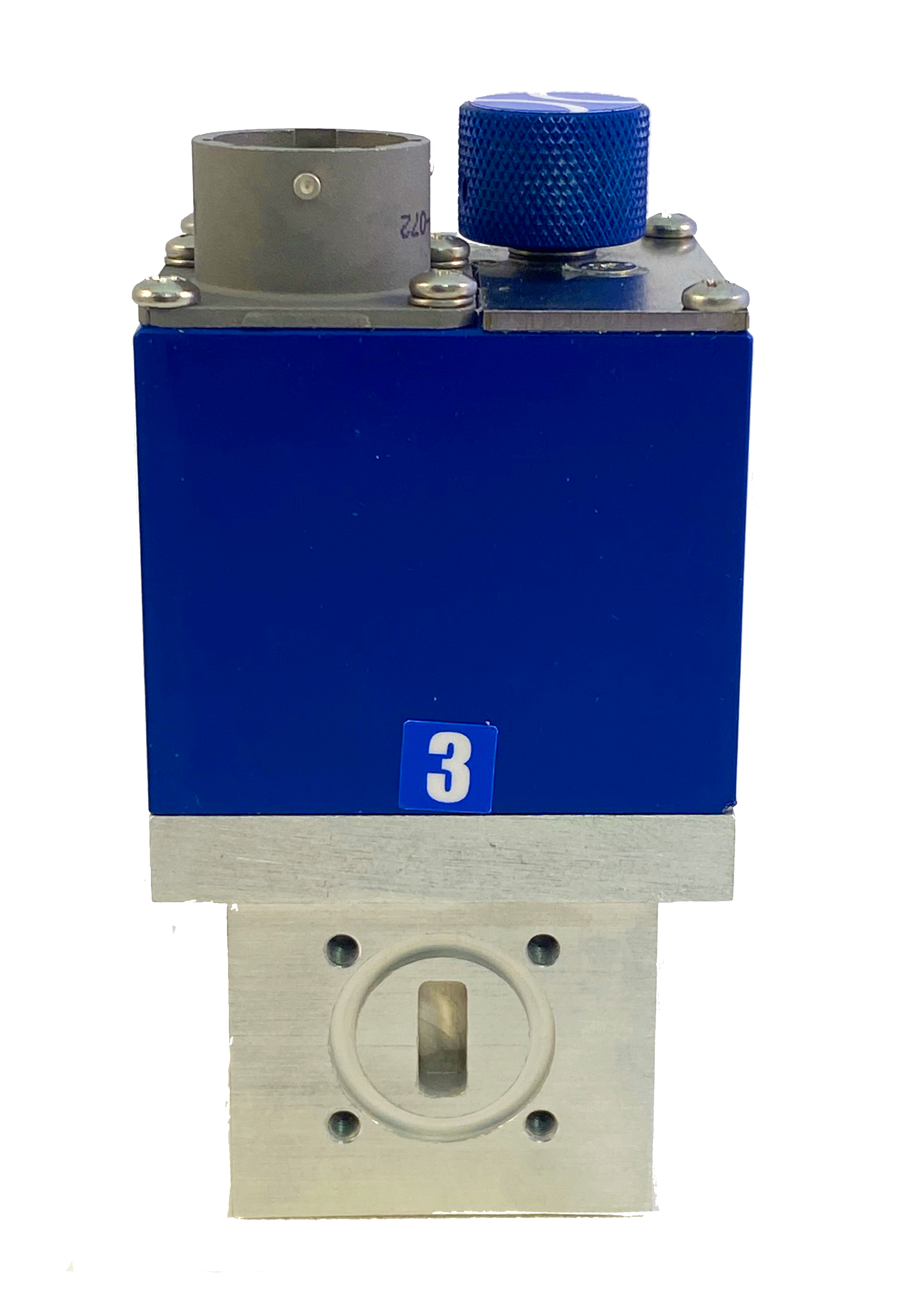

WR42 Waveguide Switch

  • ELECTRICAL

    OPERATING FREQUENCY: 18.0 - 26.5 GHZ

    RETURN LOSS: -23DB MIN

    ISOLATION: 60DB MIN

    INSERTION LOSS: .15DB MAX

    POWER HANDLING: 1KW CW MAX

    DRIVING VOLTAGE: OPTIONAL

    C-FORM CONTACTS: OPTIONAL

    INHIBIT CONTACTS: OPTIONAL (OPEN BEFORE VSWR EXCEEDS 1.3:1)

    SWITCHING TIME: 60 MSEC MAX

    POWER CONNECTOR: KPT02E12-10P or KPT2E10-6P

    MECHANICAL

    WAVEGUIDE SIZE: WR42

    FLANGE: OPTIONAL

    PRESSURE: 20 PSI (INCLUDING DRIVER)

    MATERIAL: 80% ALUMINUM

    FINISH: LUSTERON ON WAVEGUIDE, ANODIZE ON DRIVER

    WEIGHT: .350 KG

    ENVIRONMENTAL

    OPERATING TEMP: -40° TO +75°C

    NON OPERATING TEMP: -50°T0 +100°C

     HUMIDITY: 100%

    SHOCK & VIBRATION: STD SHIPPING
