Product Info

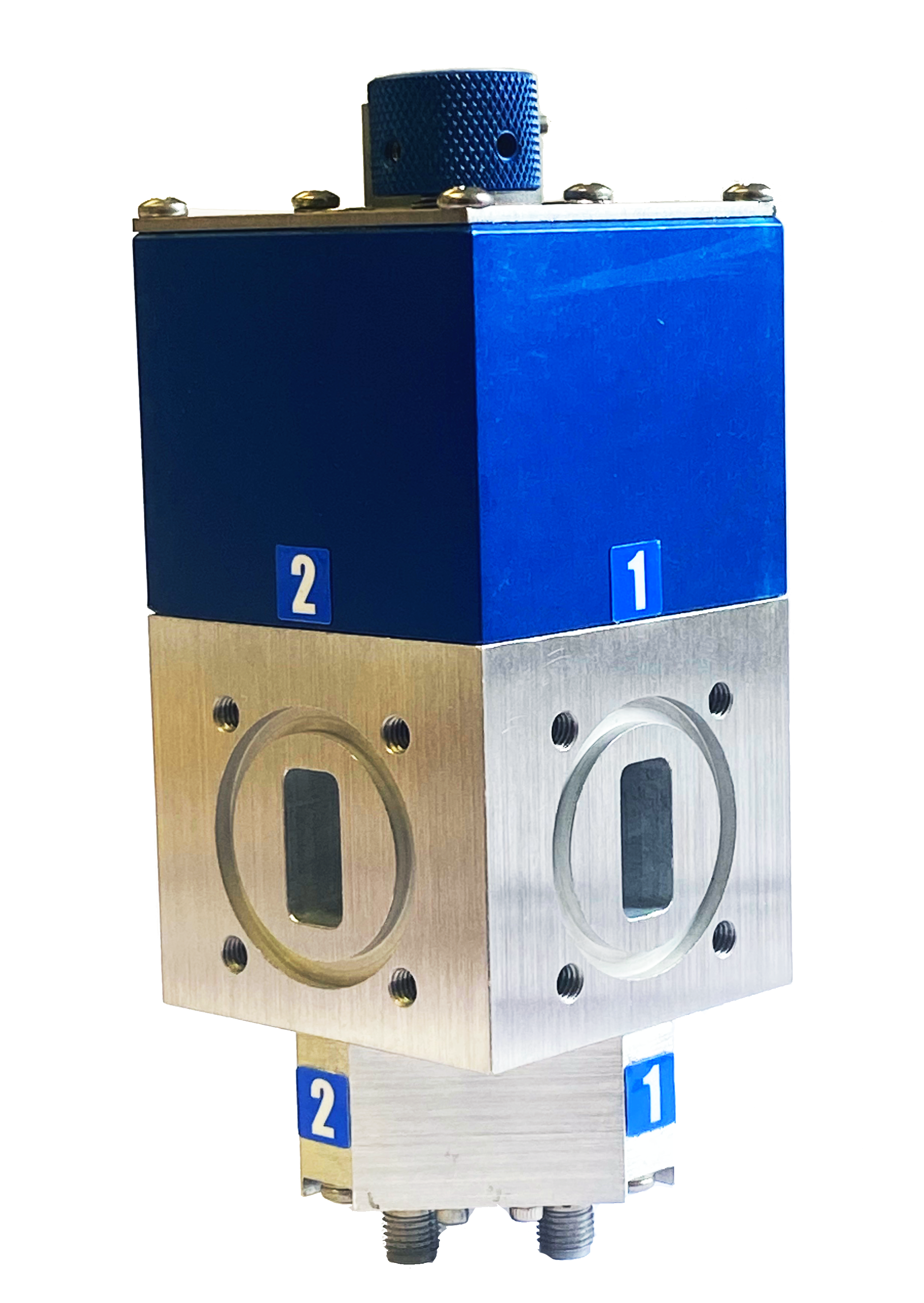

WR62 Dual Switch

1.0 ELECTRICAL

1.1 WAVEGUIDE

  • OPERATING FREQUENCY: 17.0 - 18.4 GHZ
  • RETURN LOSS: -28DB MIN
  • ISOLATION: 70DB MIN
  • INSERTION LOSS: .05DB MAX

1.2 COAXIAL

OPERATING FREQUENCIES

1 MHZ - 2.0 GHZ, 1.0 - 3.0 GHZ, 3.5 - 4.2 GHZ, 5.85 - 8.2 GHZ, 8.2 - 10 GHZ, 10.7 - 14.5 GHZ, 17.0 - 18.4 GHZ

    • RETURN LOSS: -17DB MIN
    • ISOLATION: 50DB MIN
    • INSERTION LOSS: .50DB MAX



    1.3 ISOLATION WAVEGUIDE TO COAX: 120DB

    1.4 POWER HANDLING (WAVEGUIDE): 2KW CW

    1.5 DRIVING VOLTAGE: OPTIONAL

    1.6 C-FORM CONTACTS: 4 IN STD UNIT

    1.7 INHIBIT CONTACTS: OPTIONAL (OPEN BEFORE VSWR EXCEEDS 1.3:1)

    1.8 SWITCHING TIME: 90 MSEC MAX

    1.9 POWER CONNECTOR: PT02E14-19P-072



    2.0 MECHANICAL

    2.1 WAVEGUIDE SIZE: WR62

    2.2 FLANGE: OPTIONAL

    2.3 COAXIAL CONNECTORS: SMA (any frequency) or N (up to 8.2 GHZ)

    2.4 PRESSURE: 20 PSI (INCLUDING DRIVER)

    2.5 MATERIAL: 80% ALUMINUM

    2.6 FINISH: LUSTERON ON WAVEGUIDE, ANODIZE ON DRIVER

    2.7 WEIGHT: .650 KG



    3.0 ENVIRONMENTAL

    3.1 OPERATING TEMP: -40° TO +75°C

    3.2 NON OPERATING TEMP: -50°T0 +100°C

    3.3 HUMIDITY: 100%

    3.4 SHOCK & VIBRATION: STD SHIPPING

    WR62 Dual Switch

    SKU: AST62D
    • CONTACT US FOR SHIPPING PRICES
